GT7000-i5-8250U

CPU : . Intel Core i5-8250U, 2 core 4 threads, 2.4GHz, Intel HD 520 Graphics
Motherboard : Intel CRESCENTBAY ( Lynx Point-LP )
BOIS : American Megatrends Inc. 5.6.5
Chipset : Intel Haswell
Memory : 1* SO-DIMM DDR4 Slot Support 4GB/8GB/16GB (Optional) DDR4 2400/2666MHz laptop memory

Storage
1*M.2 SSD SATA and Nvme
1*MSATA SSD: 32G/64G/128G/256G/512G/1TB (Optional)
1*SATA HDD: 160G/320G/500G/1TB/2TB (Optional)

OS : Windows 10/Linux OS
Audio : ALC662 HD Audio(Line-in, Line-out, Mic-in) Intel Lynx Point-LP HD Audio Controller
Network : Onboard Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN
Video : Intel Haswell- ULT Integrated Graphics Controller

I/O port
front panel ports : 2*USB3.0, 2*USB2.0, 1* Switch, 6*RS232 COM

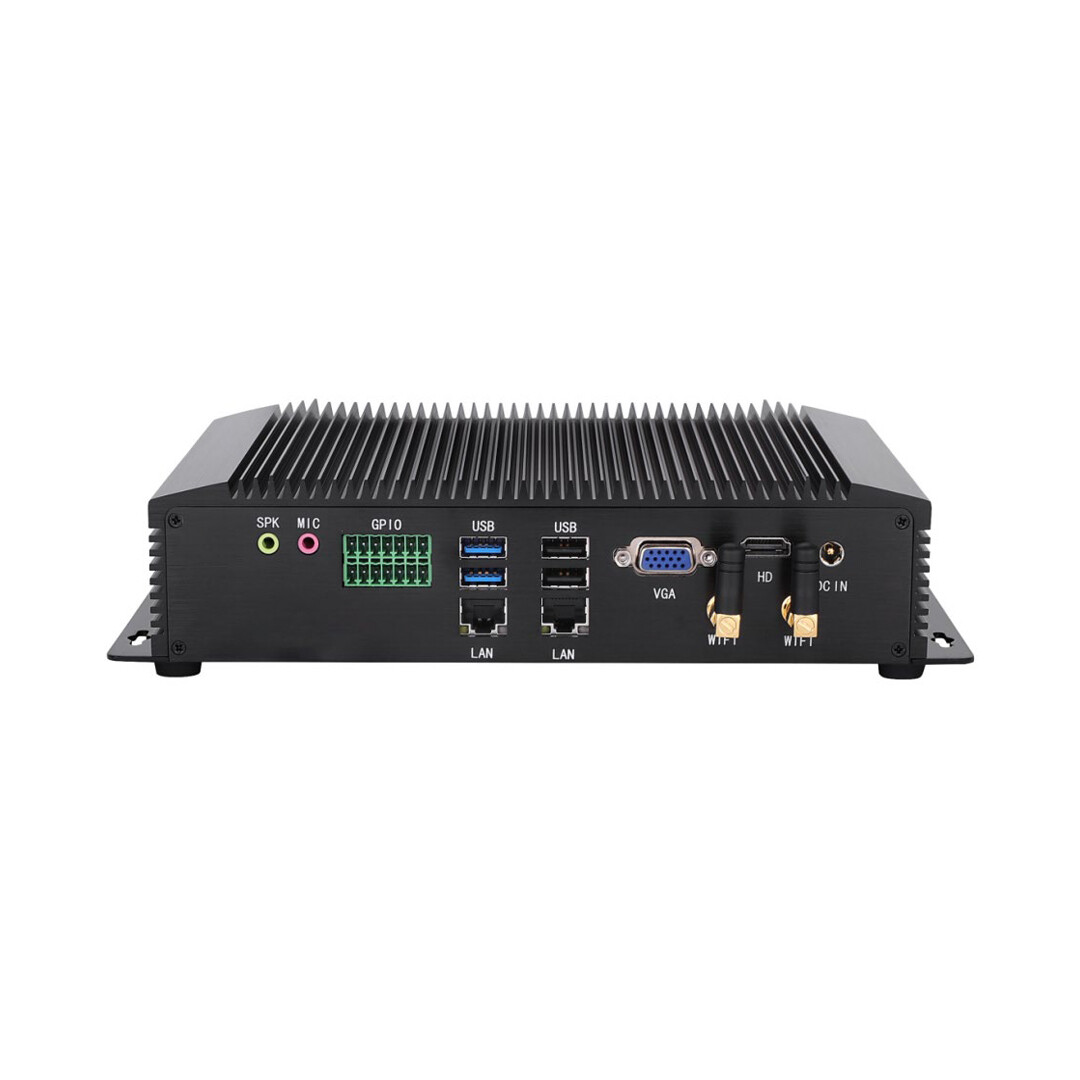

Backside ports : 2*USB3.0, 2*USB2.0, 1*HDMI(1.4), 1*VGA, 2*LAN, 1*GPIO, 1*MIC, 1*SPK, 1*DC IN, 2*Wi-Fi, 1*PS/2
COM : 6*RS232(3 line), COM1 COM2 support set to RS485/RS422

Internal ports
1*M-SATA3.0 port, support 6Gb/s
1*SATA3.0 port, support 6Gb/s
1*mini PCIE-half(Pcie bus) port for WiFi module
1*mini PCIE-full(Usb bus) port for 4G modul
SIM slot : Micro SIM, with PUSH function
Power and Working Environment
Input : DC100-240V AC/50-60Hz
Output : 12V/5A
Operating Temperature : -20/+75 Centigrade
Storage Temperature : -40/+80 Centigrade
Relative Humidity : 0%~90% (non-condensing)
Product Dimension & Details
Size : 230*175*50mm
Weight : 2.5KG
Consumption : 15W
Shell : Black

Warranty 1 Year (Carry-in)
