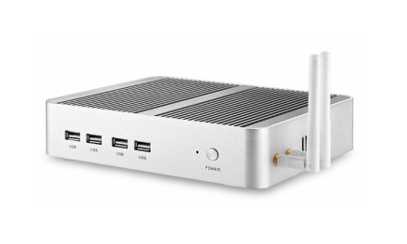

Fanless Mini PC GT770-i5-8th RAM (DDR4 )

Processor CPU Intel 2 cores 4 threads 2.4GHz 3MB cache TDP 15W HD Graphics 620.
Operating System Windows 10/ Windows 7/ Windows 8/ Linux
Memory Type LPDDR3-1866, DDR4-1600
Motherboard Intel Skylake-ULT
Processor Number 2 core/ 4 threads
Core code Skylake / Haswell
Technique 14nm
L1 data cache 2 * 32 KB, 8-Way, 64 byte lines
L2 code cache 2 * 32 KB, 8-Way, 64 byte lines
L3 cache 3MB, 12-Way, 64 byte lines
Characteristic MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX2.0, SSE4.2, HTT…
BIOS AMI BIOS, ACPI supported, support call on function automatically, Wake-On-LAN
Function Hyper-Threading, Virtualization technology, 64 bit computing
Audio Cards ALC662 sound chip, 6-channel
Intel Panther Point HDA
Network card RTL8168E PCI-E Gigabit Ethernet NIC
Ethernet 10/100/1000 BaseT LAN
WIFI With dual antenna, 802.11.b/g/n(150M or optional 300M)

I/0 Port
Display port 1* VGA + 1 * HDMI
USB port 4* USB 3.0, 2* USB2.0
SATA port 1 * MSATA3.0, 6Gb/s; 1 * SATA3.0 , 6Gb/s
MINI PCIE 1 * MSATA SSD, 1 * WiFi module
Ethernet port RJ45 10/100/1000 Mbps Adaptive

Power input port 1 inner diameter 2.5mm,external diameter 5.5mm
Audio port Standard 3.5 Audio input and output
Power and Working Environment
Machine Size 19.8*19.8*3.7CM
Machine Weight Net weight: 2.0KG. Gross Weight: 3.0KG
Input DC100-240V AC/50-60Hz
Output DC 12V/3A
Consumption 15W
Noise Fanless System
Temperature 0-70 Centigrade
Humidity 10%-90%

Warranty 1 Year (Carry-in)
