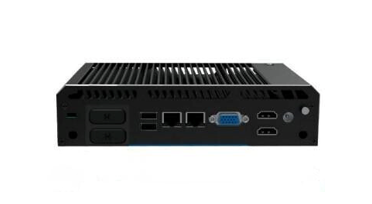

​K3-F17H-I3 5005U

CPU Core i3 5005U / Core i5 5300U/ Core i7 5500U
Cores/Threads 2 Cores / 4 Threads
Cache 3 MB Cache
TDP 15W
Architecture Broadwell
Memory 2*DDR3L slot, max support 16GB
Storage SSD (mSATA) Optional HDD (supports expansion of a 2.5-inch hard drive)

Audio Card HD Audio realtek ALC 662
Graphics Intel HD Graphics 5500
Network 10/100/1000Mbps Adaptive, RTL 8111E
Extendable WIFI+Bluetooth Module(M.2 PCIE)
OS Support Windows (Not include XP) & Linnux

I/O Ports 4*USB3.0、2*USB2.0、1*VGA、1*HDMI、1*DP、2*RJ45、1*DC、1*MIC-IN、1*LINE-OUT、 1*TYPE-C、1*CLS
Internal I/O Ports 4*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin

Display Mode 4K/ Support Triple display (Duplicate mode, Extend mode)

Max Resolution(VGA): 1920*1080@60Hz; Max Resolution(HDMI): 3840*2160@29Hz；
Max Resolution(DP): 3840*2160@60Hz
Boot Mode PXE / Auto-power-on / Wake-on-LAN
Intel Virtualization Support VT-x, VT-d
Intel Hyper-Threading Support
Working Environment Temperature：-10~60 ℃
Relative Humidity：0~95% (No Condensation)
Working Voltage DC 12V - 5A
Static Electricity Contact discharge 2K, Air discharge 6K
Storage Environment Temperature：-10~60 ℃
Relative Humidity：0~95% (No Condensation
Warranty 1 Year (Carry-in)
