vCloudPoint Specification

Specifications | ENT GROUP CO.,LTD.
Specifications | ENT GROUP CO.,LTD.

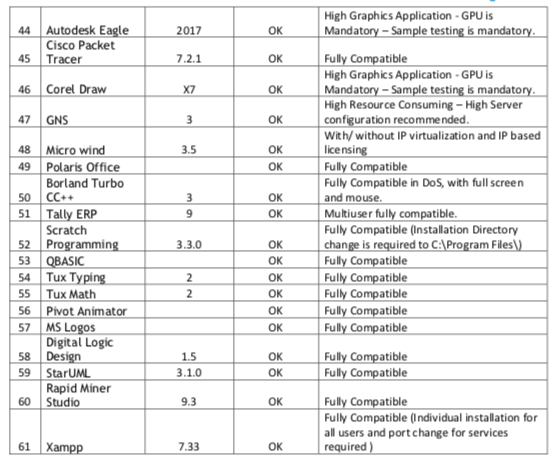

รายชื่อซอร์ฟแวร์ที่ทดสอบแล้วสามารถรองรับการใช้งานกับ vCloupoint

Screen Shot 2562-09-04 at 16.55.22.png
Screen Shot 2562-09-04 at 16.55.38.png
Screen Shot 2562-09-04 at 16.55.31.png


Call for free demo

vCloudPoint S100


Front Panel: 2 × USB 2.0 ports, 1× microphone jack, 1× speaker jack, 1× power/reset switch
Rear Panel: 2 × USB 2.0 ports, 1× 5V DC in, 1× VGA monitor, 1× RJ45 Ethernet

Power Consumption:

Standby: 0.2w
Working: 5w (independent of external USB devices)

Display Resolutions:

Normal display (true color depth) @ 60Hz: 640×480,800×600,1024×768, 1280×1024,1600×1200

Wide display (true color depth) @ 60Hz: 1280×720,1280×800,1366×768,1440×900,



10/100 Mbps Switched Ethernet (RJ45) optional WIFI antenna: 802.11b/g/n (factory install)

USB peripherals:

Supported USB devices include memory device, headphone, printer (both single and multiple functional), scanner, touch screen, U key, card reader, and USB converters


16 bit stereo audio input / output via 3.5mm stereo jacks

Video & Flash:

Powered by vCloudPoint DDP, supporting online & local Full HD 1080p in all formats install)

Internal Hardware:

All solid-state design. No moving parts, no fans, no local user storage

Connection Number:

vMatrix Server software permits up to 99 users per shared PC

Size & Weight:

124(W)x75(D)x26(H) mm; 125g for device, 70g for power supply, 400g for shipping weight


vCloudPoint A1

vCloudpoint A1-datasheet-01.jpg
